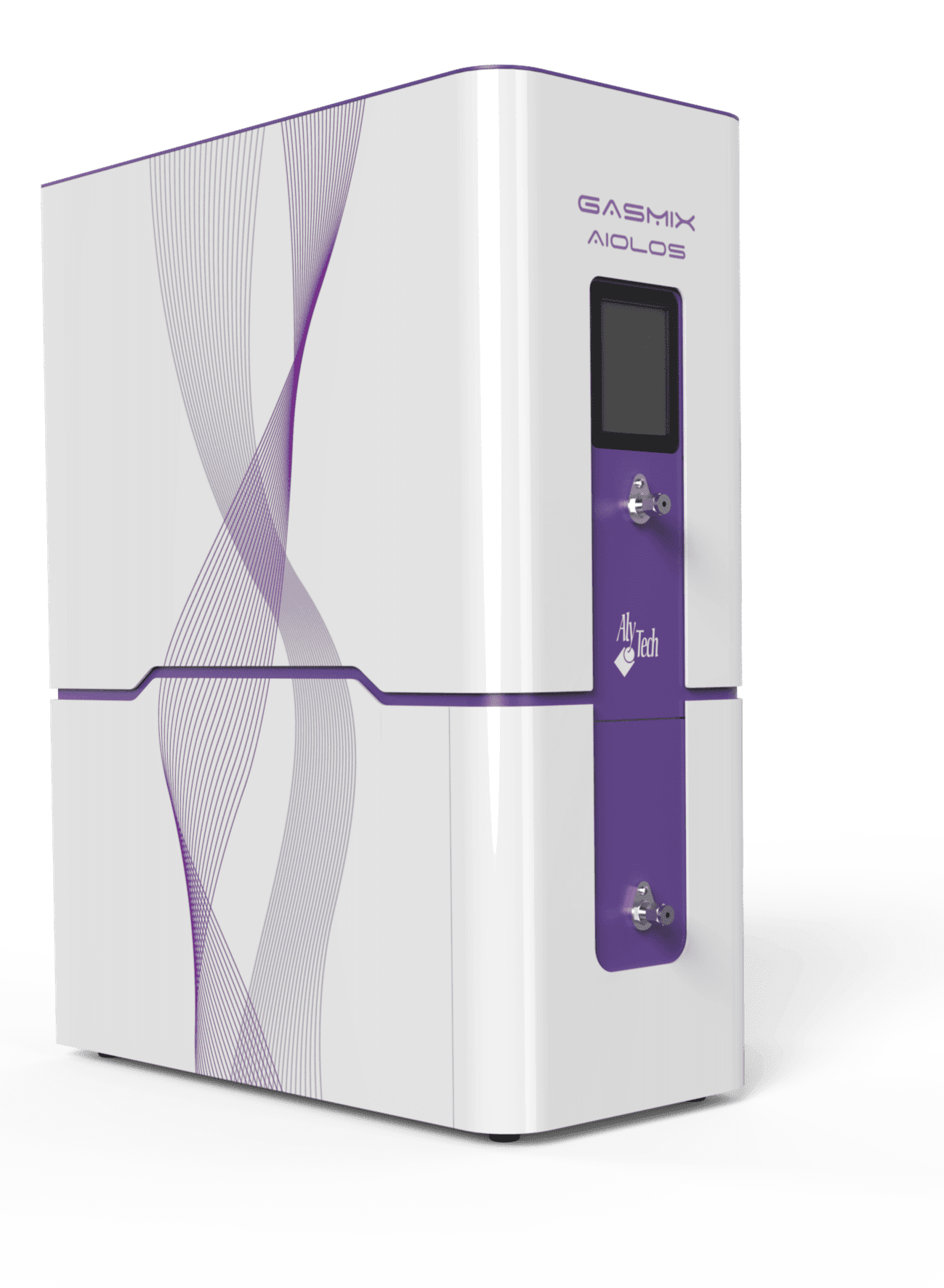

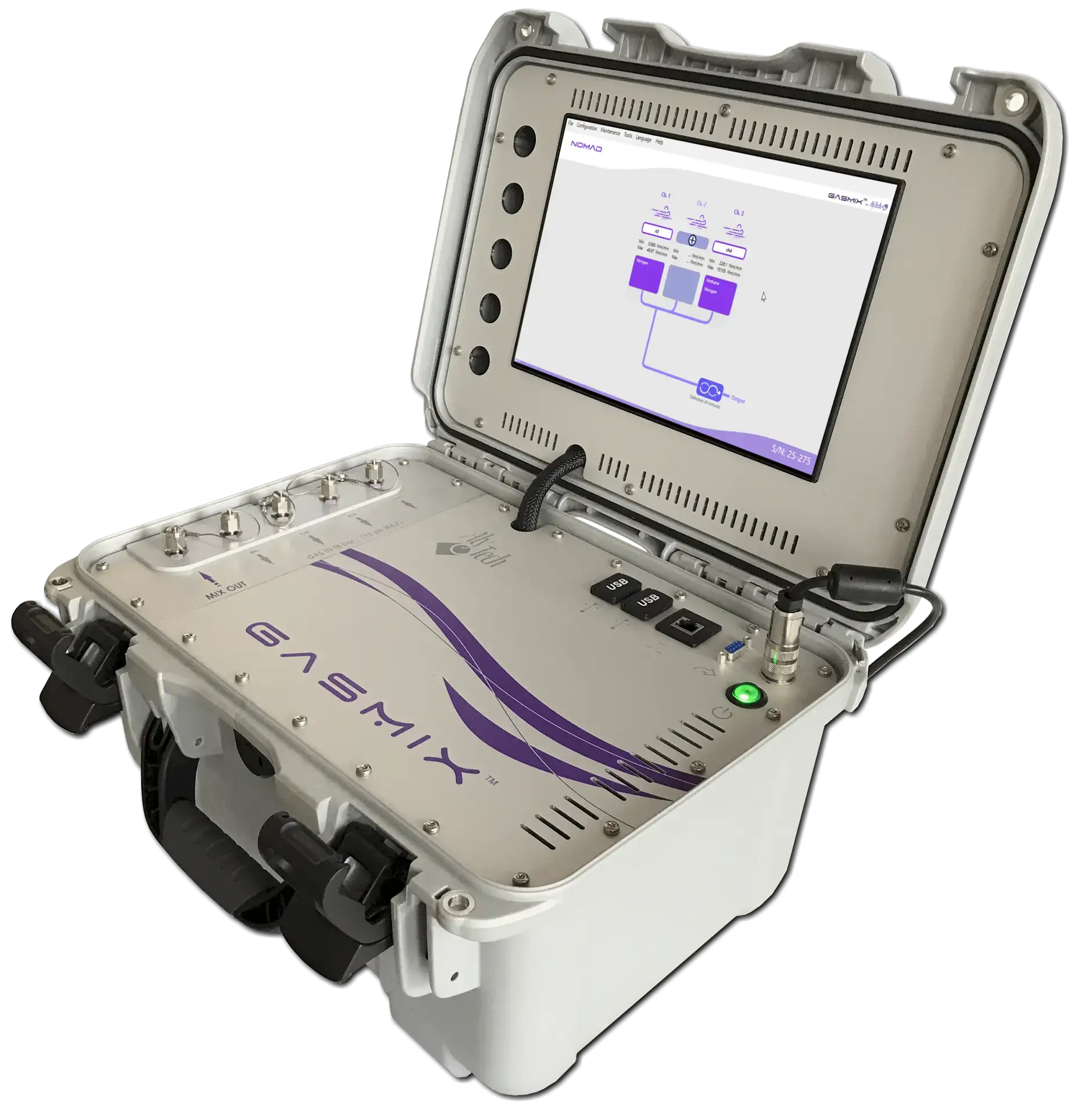

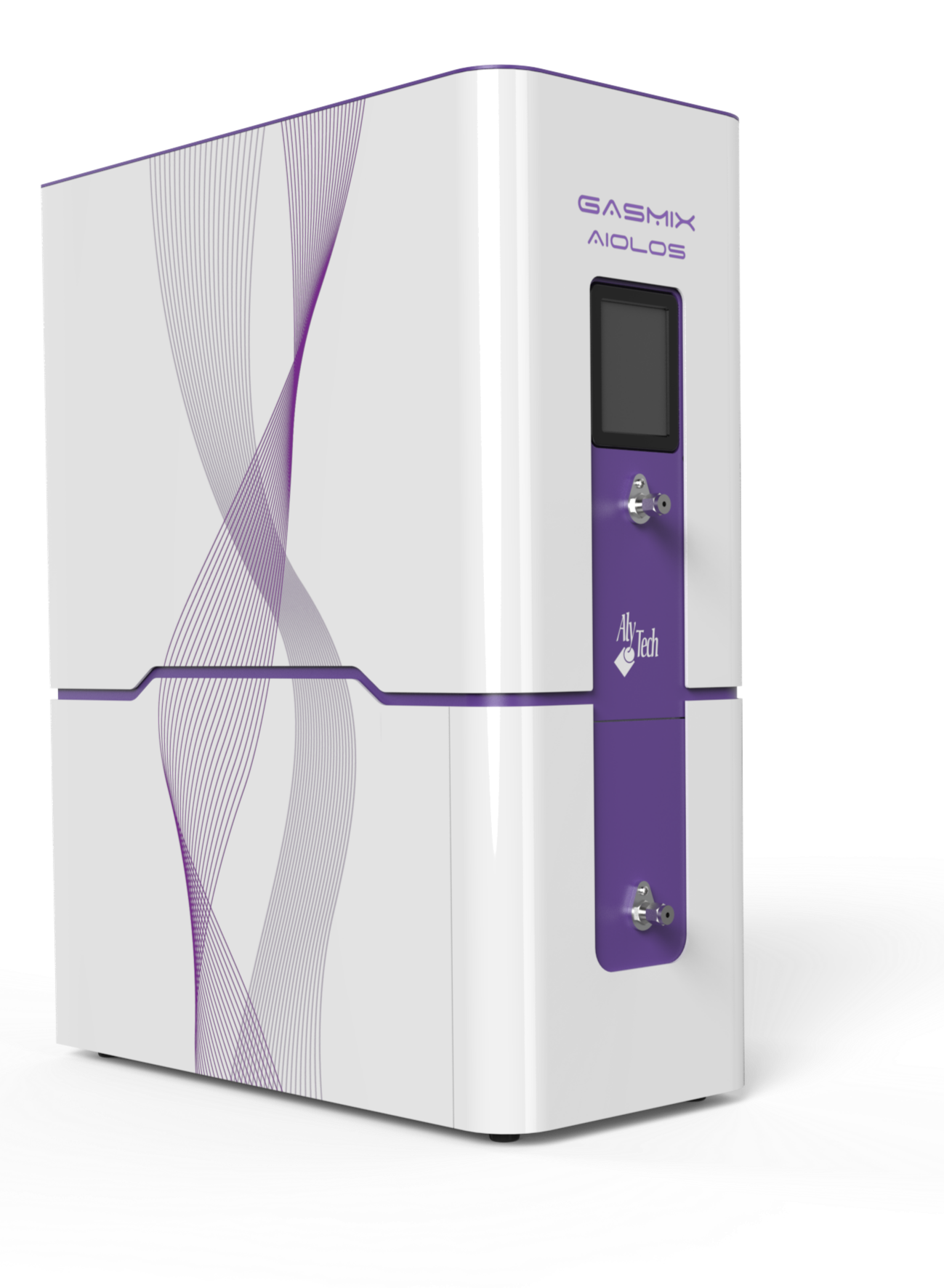

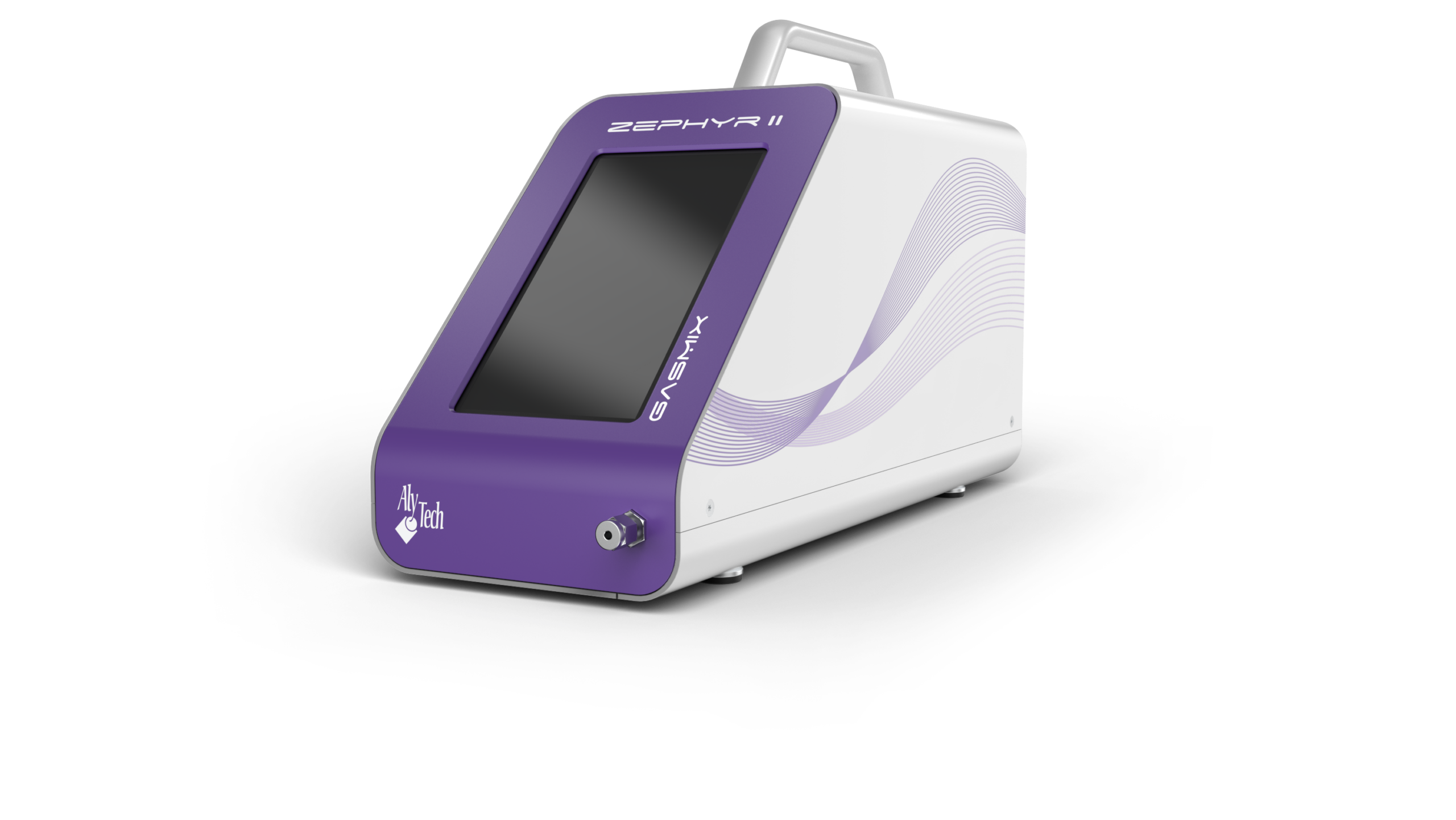

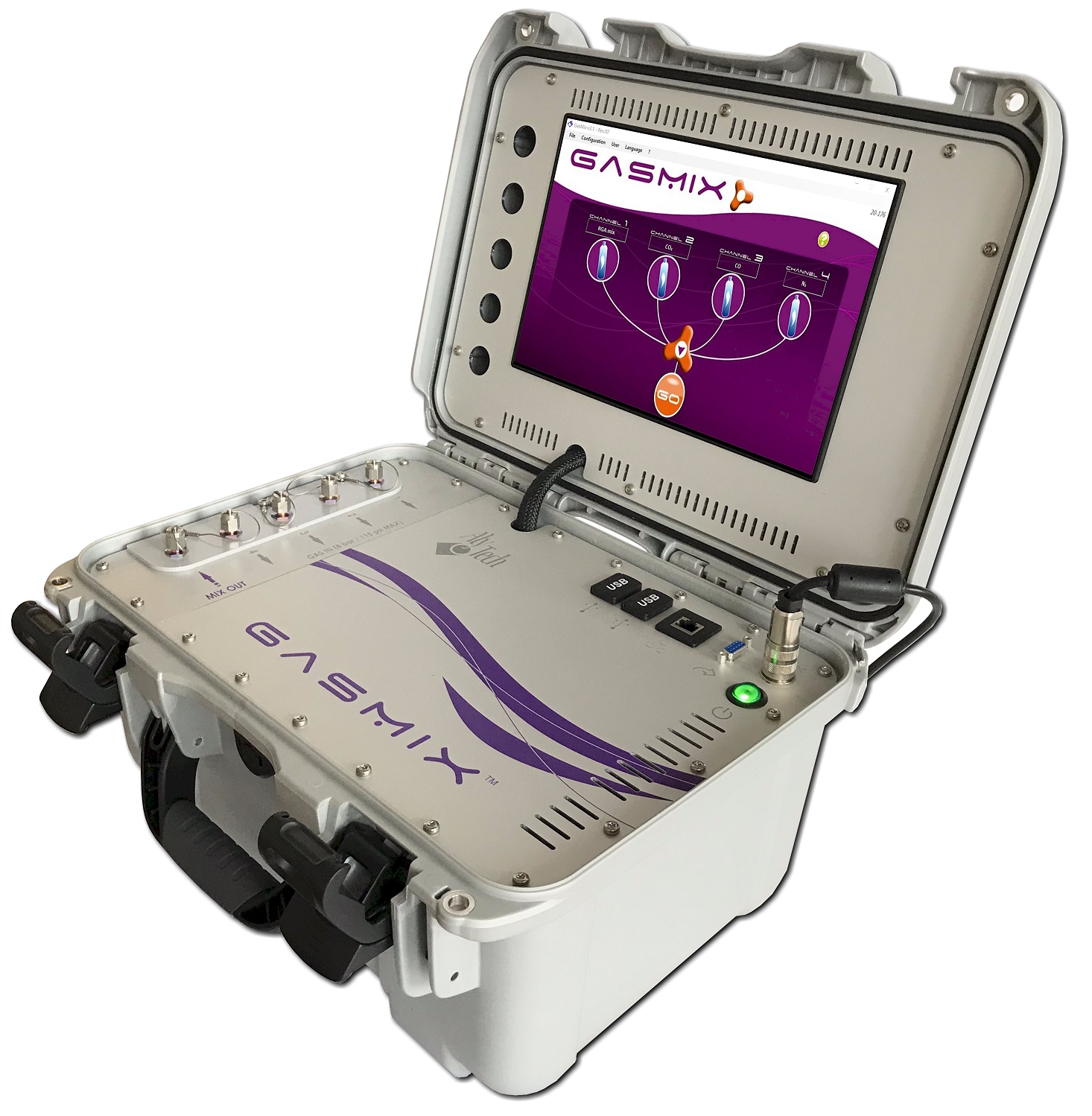

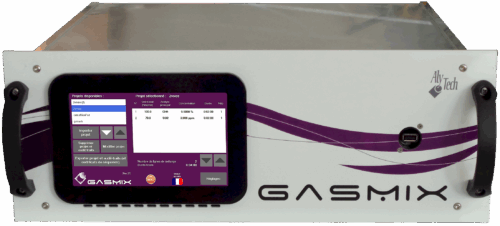

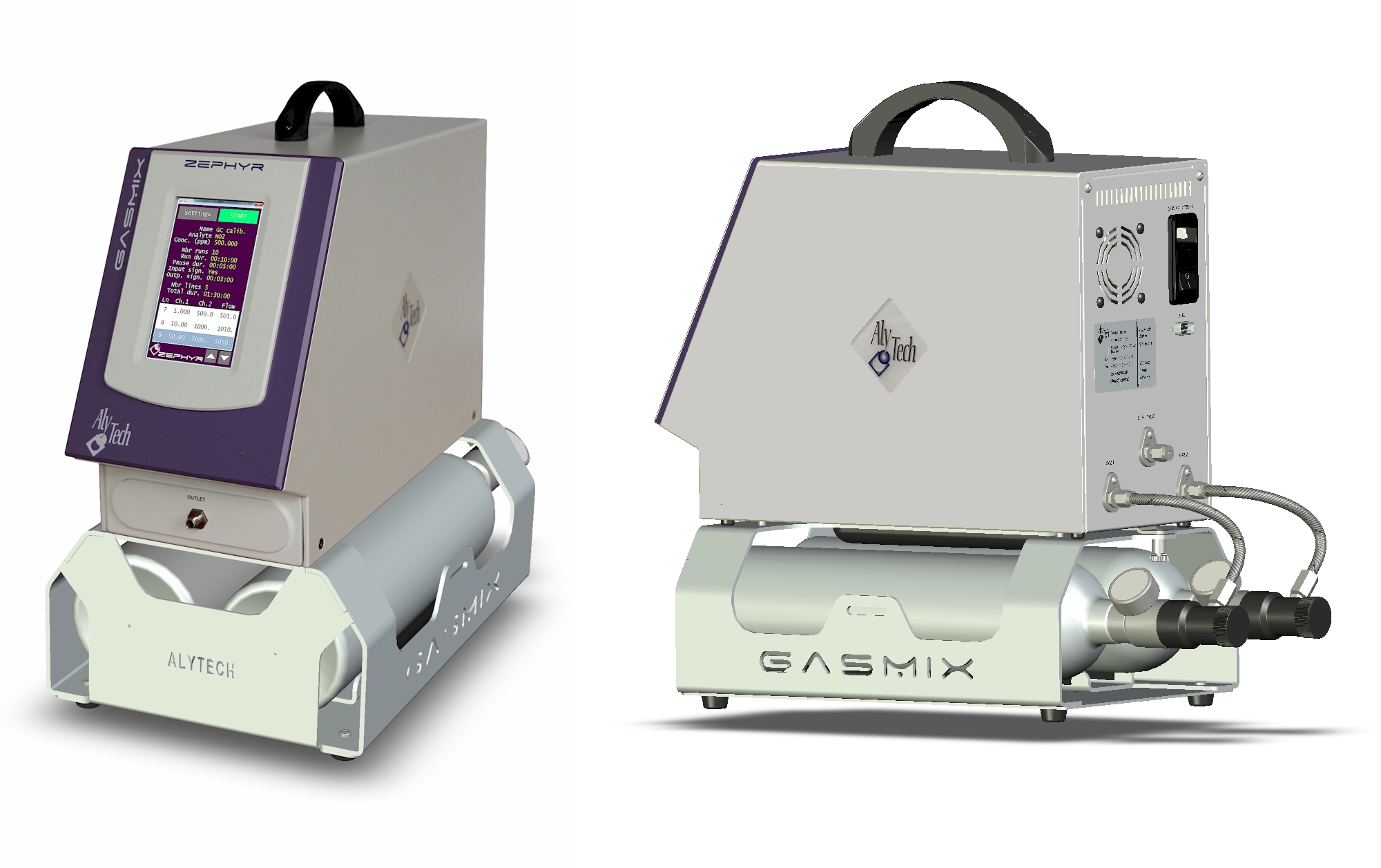

GasMix™ and LiqMix™ are AlyTech’s innovative automated systems designed for mixing or diluting gases and vaporized liquids to create on-site, customized gas mixtures tailored to your specific needs and applications, such as calibration gas standards or synthetic atmospheres. These versatile solutions are available in compact, bench-top, rack-mounted, or portable formats.
GasMix™ or LiqMix™ are capable of :
- Controlled gas blending: Perfectly blending 2 to 16 gases with dilution ratios of up to 108 times.
- Preparing gas standards: Vaporizing a liquid phase into a gas stream to create precise gas standards.
- ISO compliance: Compliant with ISO 6145-7, enabling reliable preparation of single or multipoint calibration gas standards via dynamic dilution.
- Accuracy and traceability: Achieving ±1% set point accuracy, repeatability of less than 0.1%, and full traceability with uncertainties calculations for every delivered concentrations
- Flexible concentration ranges: Creating custom sequences for binary or multi-component gas mixtures, from percentage levels to trace amounts (ppb).
- Versatile applications: Delivering or injecting generated gases into analyzers, reactors, or canisters.
- Universal adaptability: Fitting nearly any application thanks to intuitive software and advanced automation.
- Wide handling capabilities: Managing pure gases, concentrated gas mixtures, and most aggressive or reactive gases.
GasMix™ - LiqMix™ : Your benefits
COST SAVING
Replace constraints of purchasing multiple cylinders with different concentrations of the component. Take one cylinder and make your calibration gas at different concentrations down to traces. Less cylinders means less storage, less gas lines, better safety. Case studies prove, GasMix™ is paid back in about 1 year.
OPTIMIZE YOUR GAS CYLINDERS STOCK

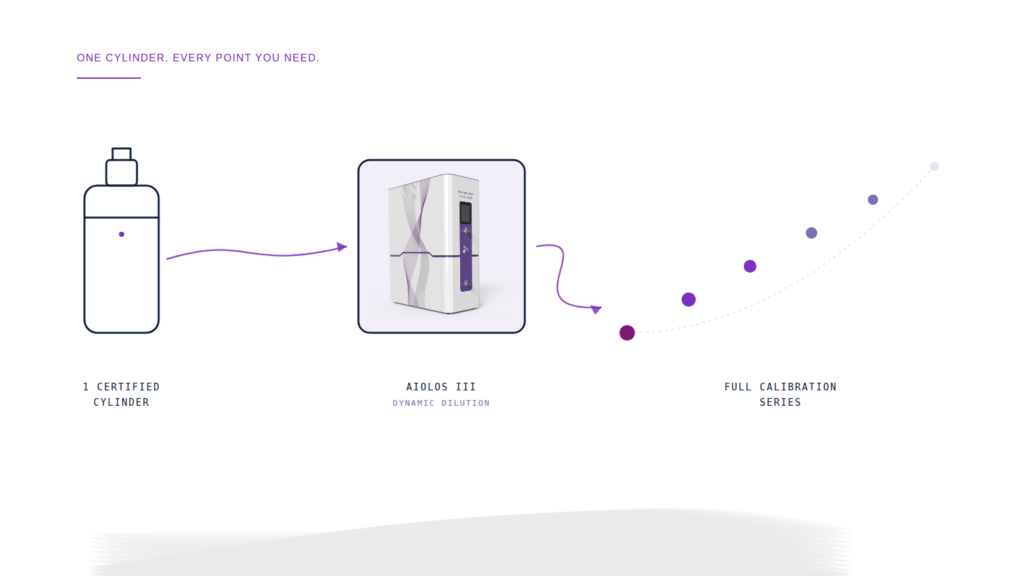

From easily available high concentration standard, stable and accurate, you dilute and produce on-site, on demand, low level concentrations with very little added uncertainty
UNSTABLE OR RARE STANDARDS

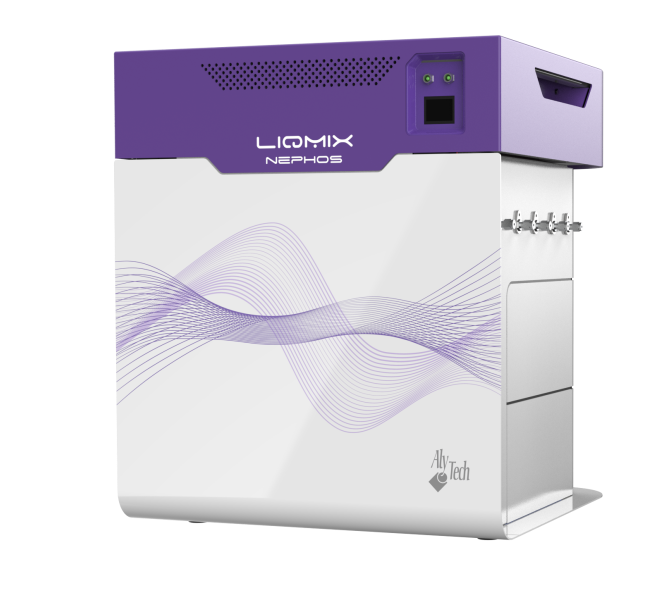

Some mixtures are unstable at storage, some are even not commercially available. GasMix™ solves this problem by making standard just when you need it. LiqMix™ is the solution for such mixtures as BTX, other VOC, Ethanol, Siloxanes and more.
A POWERFUL AND USER FRIENDLY SOFTWARE

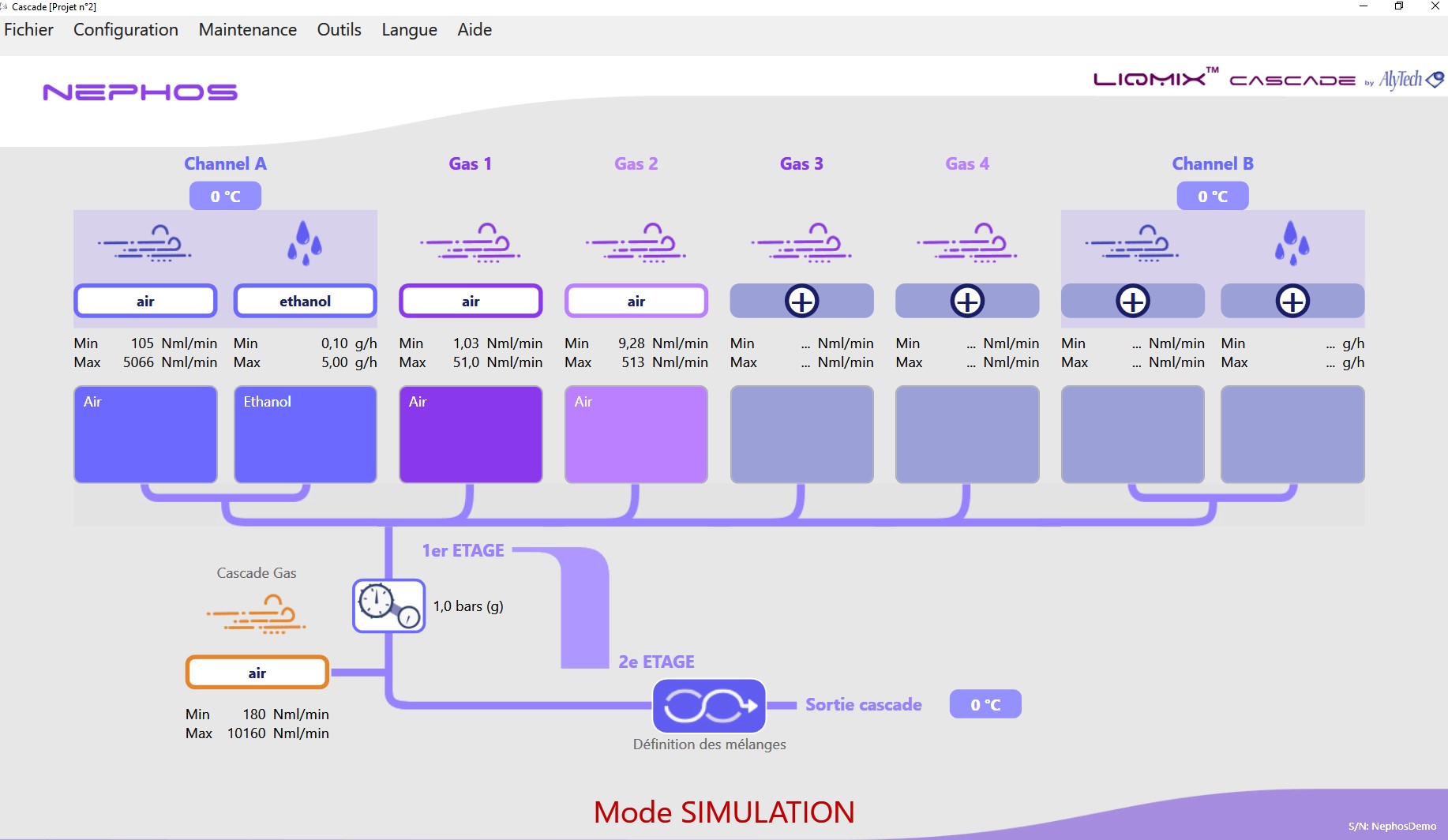

GasMix™ is driven and controlled by a dedicated software. No operator calculations are required. The software does the calculations automatically and offers the best use of your RDMs. It allows the creation and modification of an unlimited number of projects with gas generation sequences, gas compositions used, RDM calibration tables, user parameters, control parameters, etc.
AUTOMATED SEQUENCE
Enhanced interfacing features provided by the software allow synchronization between GasMix™ and the third-party instrument. The user can easily automate the calibration process by synchronizing the dilution time, pause, purge time or according to the command received (dry contacts, TTL, UDP, etc.). Operator time and laboratory efficiency are greatly optimized!
TRACEABILITY & DOCUMENTATION
GasMix™ software calculates and report the final uncertainty of each generated concentration. The Audit Trail function performs complete traceability of the operations carried out.
MARKETS WE SERVE
- Environnemental – Ambient air surveillance, CEMS
- Petrochemical – Oil & Gas laboratories
- Pharmaceutical, Food & Flavour – Quality control
- Automotive Industry – Engine bench and Emission Control
- Specialty Gases : customized secondary standards
- Calibration Laboratories and Inspections

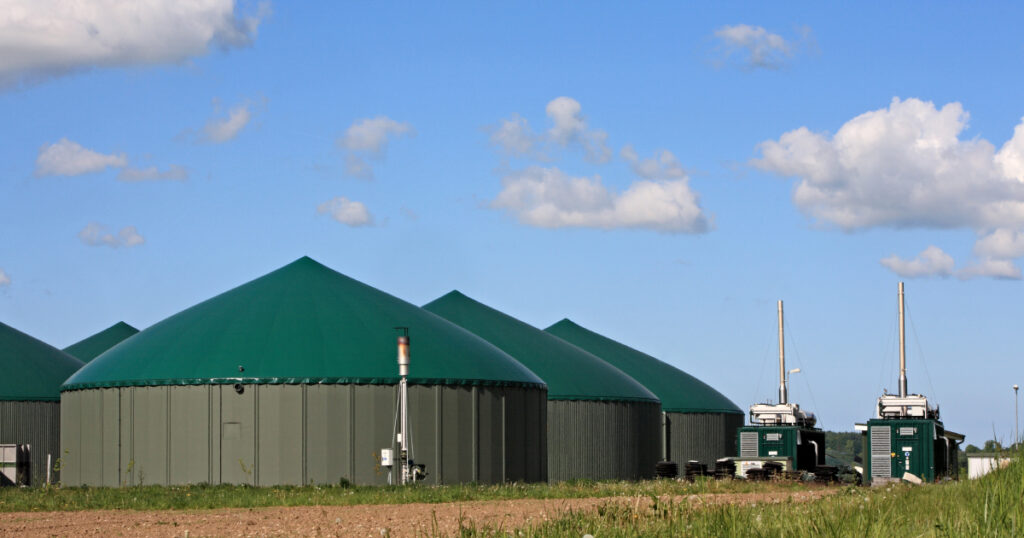

- Renewable Energy – Biogas
- Research: Generation of complex gas mixtures
KEY APPLICATIONS

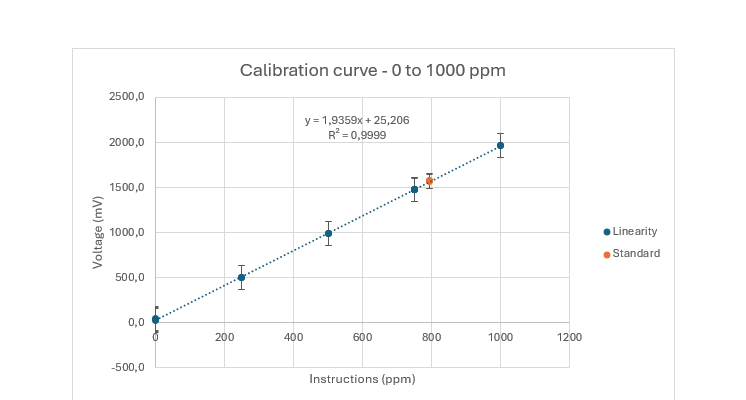

- Linearity check and calibration of Gas Chromatography with FID, TCD, PID, PHID, SCD, MS and other detectors
- Calibration of gas analysers for refinery RGA’s
- Linearity check and calibration of elemental analysers, like sulphur traces
- Validation, model building and calibration of FTIR, RAMAN and other spectrometers
- Production control, LOD-LOQ and calibration of gas detectors
- Creation of controlled atmosphere in reactors for aging, oxidation research
- Air treatment systems control (Regeneration performance)
- On-line gas analyser calibration for ambient air monitoring, CEMS, stack gas
