GASMIX™ COMPACT
ZEPHYR
On‑site two‑gas mixer/diluter — compact, battery‑ready, analyzer‑friendly
Embedded ZeSoft — touch‑first control, Smart Sequence builder, automatic uncertainty & Audit Trail.
- 2 Channels
- ISO 6145‑7
- Smart Sequences
- Battery Option: 8 h
- Aggressive Gases Ready
System Concept

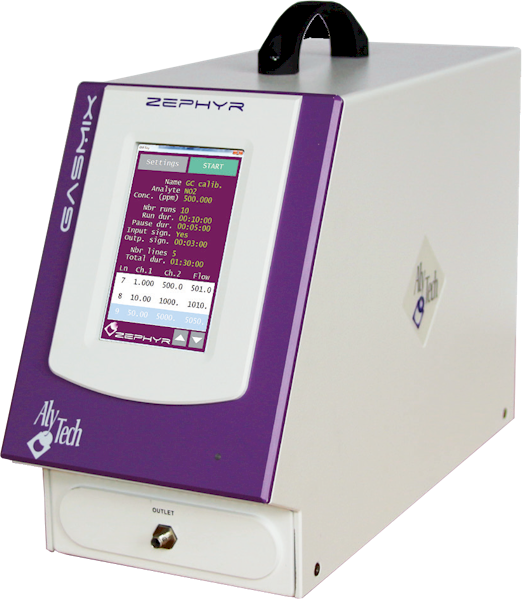

ZEPHYR brings on‑site customized gas standard preparation to a compact footprint. Thanks to its embedded ZeSoft and 5″ touch interface, Zephyr can be installed exactly where you need it: on a bench, in a mobile lab or next to the analyzer. It is widely used for applications that involve only two gases, such as multi‑point calibration from a concentrated standard plus diluent.
The interface is intuitive and fully automated: run a single injection or a pre‑programmed sequence. ZeSoft computes the target flows, calculates uncertainty of the final concentration (considering MFC flows and parent gas certificate) and logs events for traceability.
Smart Sequence Builder creates multi‑point curves in one click — choose number of points, start/stop concentrations, and the software generates the levels automatically. Optional battery guarantees up to 8 hours of uninterrupted operation in the field or during mains cut‑off.
Operation & Software

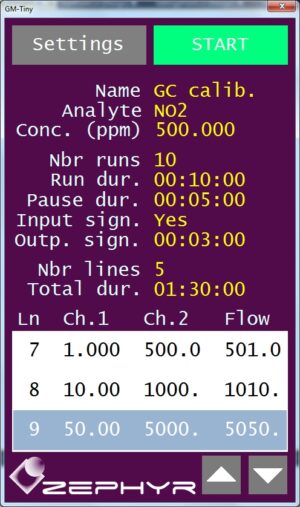

ZEPHYR is operated via the built‑in ZeSoft on a 5″ touch screen — no PC required. It can also exchange signals with an analyzer via dry contact or TTL. Projects store gas libraries, MFC calibration curves per gas, user settings and analyzer sync parameters.
- Touch‑first UI with embedded control — plug & mix
- Smart Sequence builder for multi‑point recipes
- Automatic uncertainty calculation and reporting
- Compatible with aggressive/reactive gases at trace level
- Battery option for 8 h autonomous operation
Metrological Excellence
Every integrated Mass Flow Controller (MFC) undergoes 400‑point factory calibration across the full dynamic range and for each selected gas matrix (He, Ar, CH4, H2, N2, Air, …). This ensures superior linearity and precision, especially at very low and very high flow rates.
- ISO 6145‑7 compliant
- NIST‑traceable calibration
- Uncertainty calculation
- ±1% set point accuracy and <0.1% repeatability *
- Dilution factor: 2,000 in standard - up to 10,000
- Analyzer sync via dry contact/TTL
Key Benefits
Compact & Simple
Small footprint, embedded control, no external PC required.
8 h Autonomy
Optional battery for uninterrupted field operation.
Accurate by Design
Multi‑point MFC curves, uncertainty computation, traceability.
Smart Sequences
One‑click multi‑point curve builder and automated runs.
Aggressive Gases
SS316 + inert coating, Kalrez® seals; sulfurs, NO₂, NH₃, VOC.
Analyzer‑Friendly
Dry contact/TTL sync; stable flows for GC, µGC and analyzers.
Applications
Linearity check and calibration of GC (FID/TCD/PID/PHID/SCD/MS); refinery process analyzers; trace elemental analyzers; microGC for biogas; synthetic atmospheres in reactors/glove boxes; steam dilution and general two‑gas mixing.
GC / µGC Calibration
Multi‑point curves and linearity checks with Smart Sequences.
Process & Refinery
On‑site standards for process control analyzers.
Research Atmospheres
Synthetic gases for aging, oxidation or glove‑box environments.
Trace Elements
Calibration of trace elemental analyzers and purity checks.
FAQ — ZEPHYR
Most asked questions about compact two‑gas mixing, automation and metrology.
What dilution range does Zephyr cover?
Does Zephyr need a PC?
Is it compatible with aggressive gases?
What are the pressure and size specs?
Is battery operation available?
Ready to Mix On Site with Zephyr?
Create on‑demand standards with a compact, touch‑first GasMix™ diluter.
